Stereo Loudspeaker System
IDS Equalizer
These pages are
copyrighted.
No portion of this site may be reproduced in whole or in part
without written permission of the author.

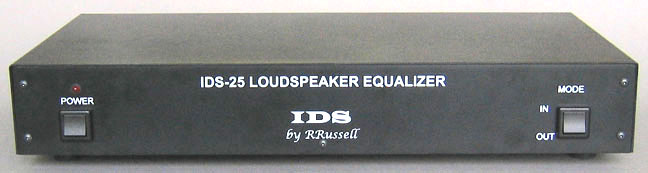

The IDS-25 Loudspeaker Equalizer is designed specifically to complement the IDS-25 loudspeaker. Together, the speaker and equalizer make the complete IDS-25 system. The contour is unique for the IDS drivers, including their arrangement in a long column.

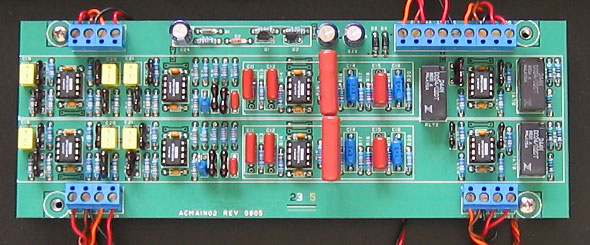

The circuit contains high-speed op-amps, film capacitors and metal film resistors. A mode switch is included to allow the user to leave the equalizer connected to the system but electrically flat in response in case a different speaker is being used. Response is electrically flat at the OUT position. The mode selector must be at the IN position when the IDS-25 system is used.
Both balanced and unbalanced connectors provided for inputs and outputs. A line voltage switch is also provided for 120V and 240V. The AC 3-wire line cord is removable.
|
Equalizer Specifications
|
|
|
Frequency response |
20Hz to 20 kHz |
|
|
|
|
Harmonic distortion |
less than .01% at I KHz |
|
|
|
|
Signal to noise ratio |
better than 110 dB |
|
|
|
|
Input Impedance |
50k ohms |
|
|
|
|
Output load capability |
500 ohms minimum |
|
|
|
|
Output impedance |
50 ohms |
|
|
|
|
Maximum input voltage |
8.8 V rms |
|
|
|
|
Maximum output voltage |
8.8 V rms |
|
|
|
|
Power requirements |
120/240 VAC, 50/60Hz, 10W |
|
|
|
|
Dimensions |
17” Wide, 8.5” Deep and 2.8” High |
|
|
|
|
Construction |
All metal cabinet, white legend |
|
|
|
|
Weight (net) |
9 lbs |
|
|
|
|
Front panel Controls: |
|
|
Mode switch |
in/out |
|
Power switch |
on/off |
|
|
|
|

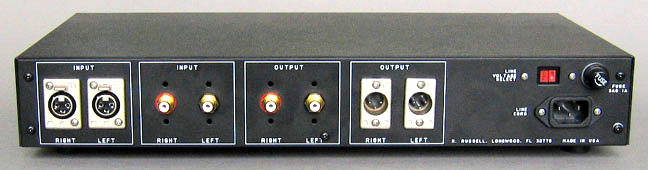

Rear panel Connectors: |
|
|
Unbalanced in and out |
RCA phono |
|
Balanced in and out |
XLR type |
